Dirichlet Process Mixture Models

1. Motivation
2. Dirichlet Process Mixture Models
3. Gibbs Sampling Algorithm
4. Simulation results

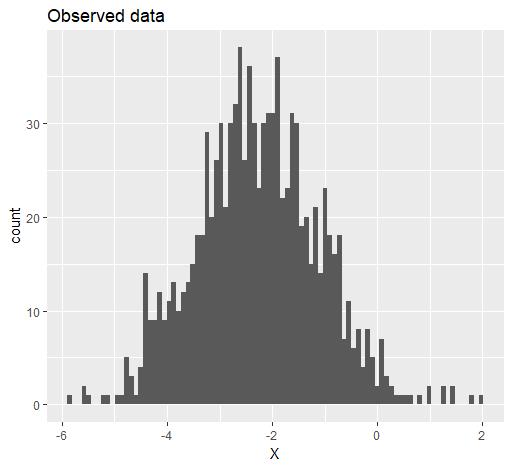

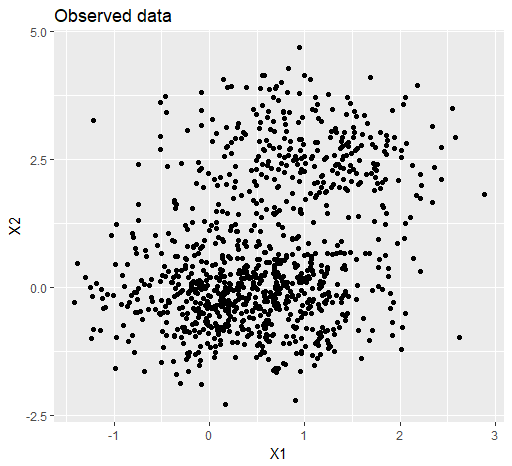

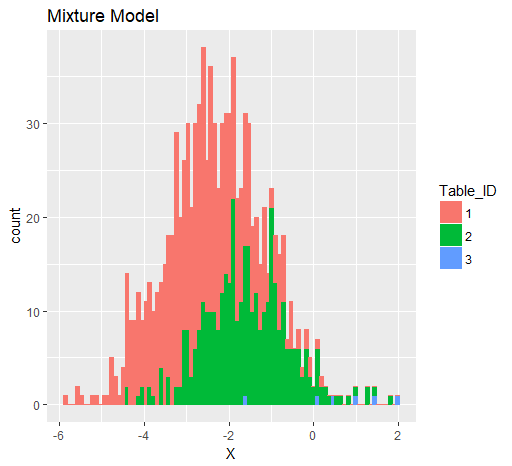

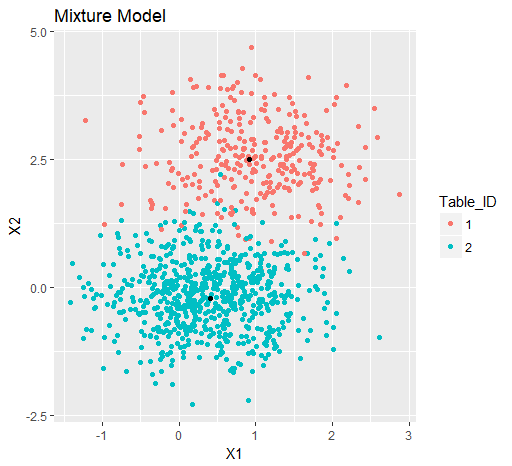

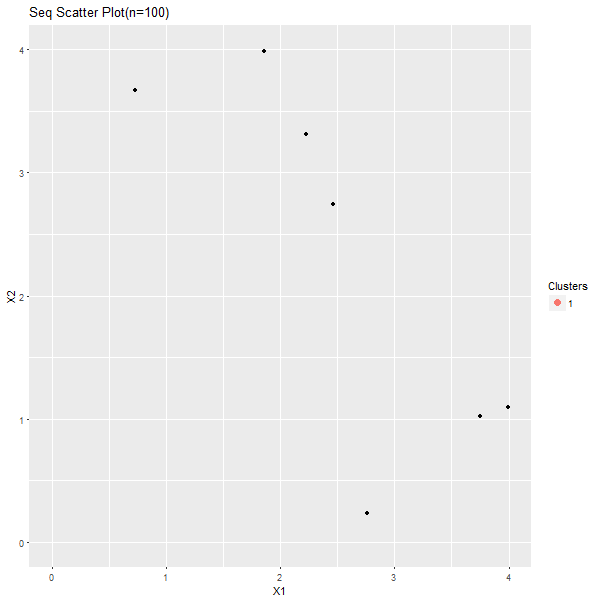

Truth is complicated:

Truth is complicated:

Truth is complicated:

Truth is complicated:

\(DP\) is a random measure defined as: \[\mu = \sum^{\infty}_{i=1} p_i \delta_{\phi_i}, \] where:

• \((p_n)_{n\in N}\) are random weights by stick-breaking construction with parameter \(\theta\)
• and \(G_0\) is "the base measure"

Therefore, \(\mu \sim DP(\theta, G_0)\) has following repressentation:

\[\begin{array} {rl} \mu & = \; \displaystyle \sum^{\infty}_{i=1} \Big[ V_i \prod^{i-1}_{j=1}(1-V_j) \Big] \delta_{\phi_i} \\ V_i & \overset{iid}{\sim} \; Beta(1, \theta) \\ \phi_i & \overset{iid}{\sim} \; G_0 \end{array}\]

Gibbs Sampler: also called alternating conditional sampling. Each iteration draws each subset conditional on the value of all the others \((X = (X_1, \cdots , X_d))\).

1. Starts from an arbitrary state \(\mathbf{X}^{(0)}=\mathbf{x}^{(0)}\)
2. Moves with transition probability density: \[\mathbf{K}_G(\bf{x, y})=\prod^d_{\ell=1}\pi(y_\ell|\mathbf{y}_{1 : \ell -1}, \mathbf{x}_{\ell+1 : d})\]

3. Sample next state \(\mathbf{X}^{(m)}\) from \(K_G(\mathbf{X}^{(m-1)}, \mathbf{y})\)

4. Sub-steps(\(\ell\)-th): Sample \(\mathbf{X}^{(m)}_\ell\) from \[\pi(x|\mathbf{X}^{(m)}_{1 : \ell -1}, \mathbf{X}^{(m-1)}_{\ell+1 : d})\]

Simple Mixture Model: \[\begin{array} {l} \mathbf{y}_i|\mathbf{\theta}_{i} \sim \mathcal{N}(\mathbf{\theta}_i, 1) \\ \theta_i \sim DP(\alpha, G_0) \\ G_0 \sim \mathcal{N}(0,2) \end{array}\]

In order to implement, explicit expression is needed : \[\theta^t_{i}|\theta^t_{-i},y_i \sim \sum_{j\ne i} b_i F(y_i, \theta^t_j) \delta(\theta^t_j) + b_i \alpha \bigg[\int F(y_i, \theta)G_0(\theta)\bigg] H_i\]

\[b_i=\frac{1}{\sum_{j\ne i}F(y_i, \theta_j) + \alpha \int F(y_i, \theta)G_0(\theta)}\]

• Likelihood function: \(F(y_i|\theta_i) = \frac{1}{\sqrt{2\pi}}e^{-\frac{1}{2}(y_i - \theta_i)^2}\)

• Posterior distribution \(H_i = p(\theta|y_i)= \frac{F(y_i|\theta)G_0(\theta)}{\int{F(y_i|\theta)G_0(\theta)}}= \frac{1}{\sqrt{2\pi}\sqrt{2/3}}e^{\frac{(\theta - \frac{2}{3}y_i)^2}{2 (2/3)}}\)

• \(\int{F(y_i|\theta)G_0(\theta)} = \frac{1}{\sqrt{6\pi}}e^{\frac{1}{6}(y_i)^2}\)

• or another simple way: \(\Big(= \frac{F(y_i|\theta)G_0(\theta)}{H_i(\theta|y_i)}\Big)\)

If the posterior distributions \(p(\theta|y)\) are in the same family as the prior probability distribution \(p(\theta)\) , the prior and posterior are then called conjugate distributions, and the prior is called a conjugate prior for the likelihood function.

Model parameter \(\mathbf{\mu}\): mean of Normal with known variance \(\Sigma\).

Prior of \(\mathbf{\mu}\) is \(\mathcal{N}(\mathbf{\mu_0}, \Sigma_0)\)

By derivation, posterior distribution is :

\[\mathcal{N}\Bigg(\Bigg(\Sigma^{-1}_0+\Sigma^{-1} \Bigg)^{-1} \Bigg(\Sigma^{-1}_0\mathbf{\mu_0}+\Sigma^{-1}\mathbf{y}\Bigg),\Bigg(\Sigma^{-1}_0+\Sigma^{-1} \Bigg)^{-1}\Bigg)\]

\[\begin{array} {ll} \hline \textbf{Algorithm:} & \text{Gibbs Sampler for DPMM} \\ \hline 1.\mathbf{Input:} & \mathbf{y} \in \mathbb{R}^n,\; \\ & \theta^{(0)}_i \in (0,1), i=1,\cdots, n \\ & \text{or} \;\theta^{(0)}_i = 0, i=1,\cdots, n \\ 2. \mathbf{Repeat:} & (1) \; q^*_{i,j} = F(y_i, \theta^{(m)}_i) \\ & (2) \; r^*_{i} = \alpha \int F(y_i, \theta^{(m)}_i) d G_0(\theta^{(m)}_i) \\ & (3) \; b_{i} = 1/(\sum^n_{j=1} q^*_{i,j} + r^*_{i} ) \\ & (4) \; \text{Draw} \; \theta^{(m)}_{i}|\theta^{(m)}_{-i,y_i} \sim \sum_{j\ne i} b_i q^*_{i,j} \delta(\theta^{(m)}_j) + b_i r^*_i H_i \\ & (5) \; \text{Update} \; i=1, \cdots, n \\ 3. \mathbf{Deliver:} & \hat\theta = \theta^{(m)} \\ \hline \end{array}\]

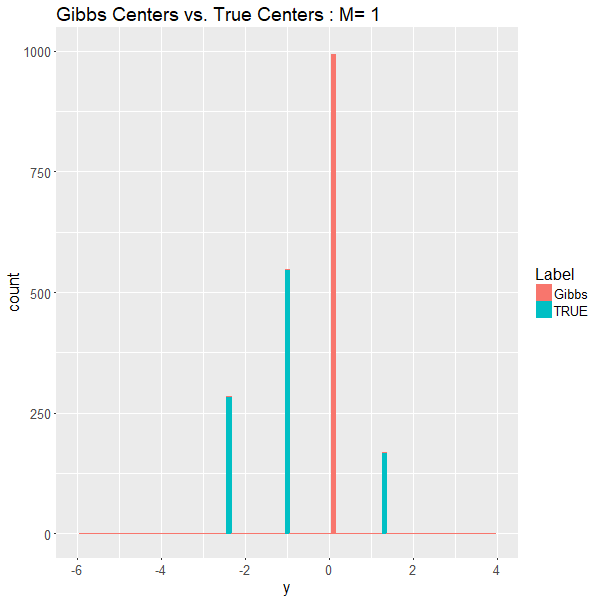

Start from a state with all same values:

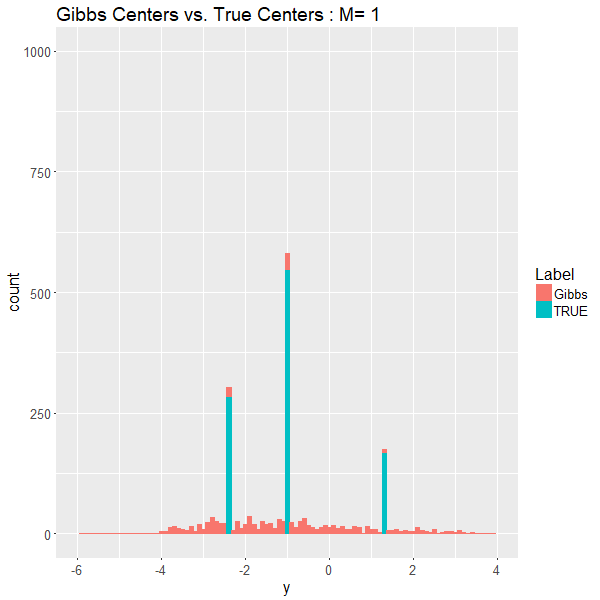

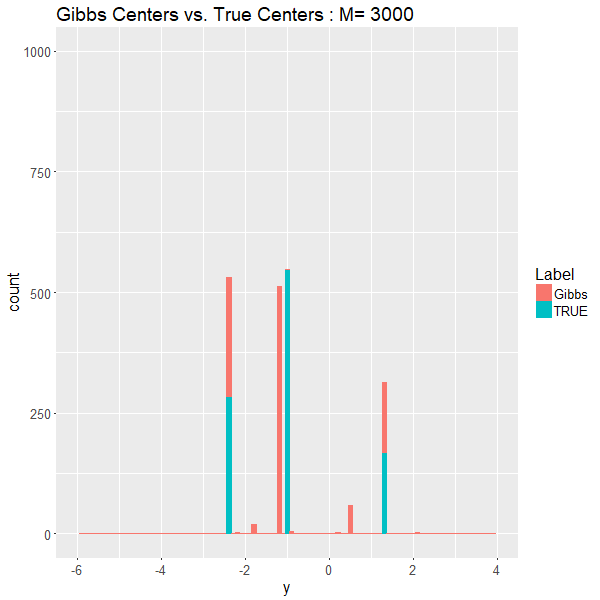

Start from a state with all different values:

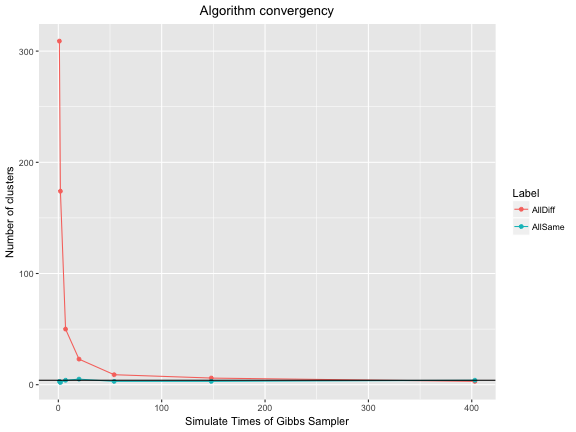

Average total number of clusters \((K_n)\) v.s iteration times \((M)\) of Gibbs Sampler

\((n=1000, M\in (1,2,7,20,54,148,403))\)

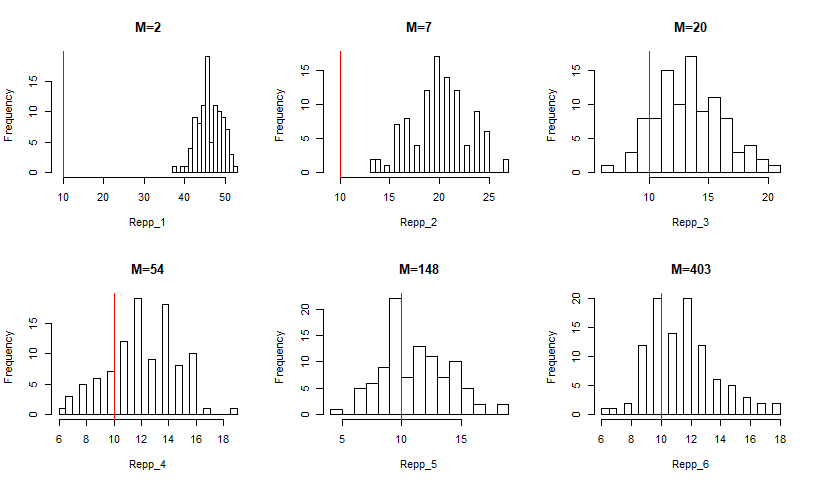

Histogram of 100 replications for every given M:

• Total number of clusters approach the truth (15) when M increases

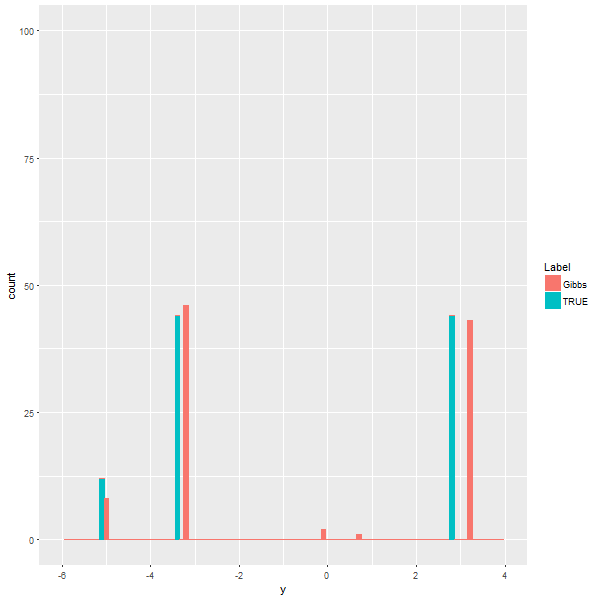

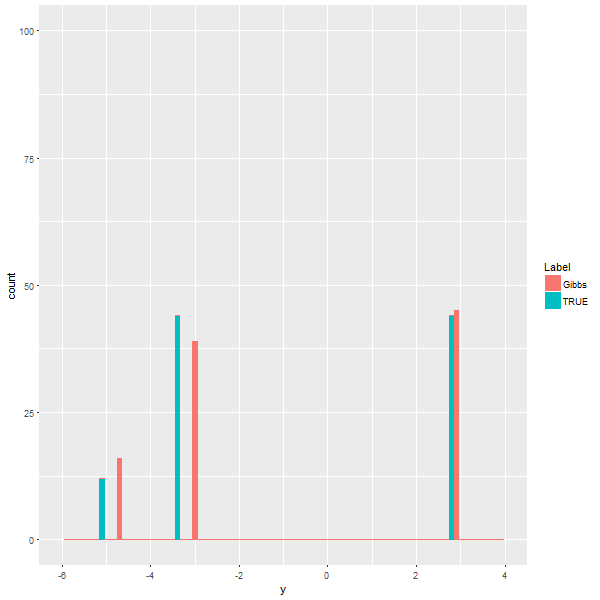

Centers of clusters might be of interest to you.

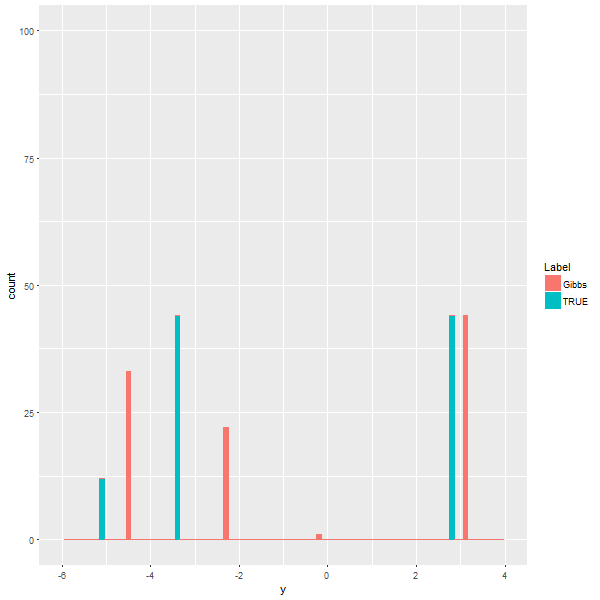

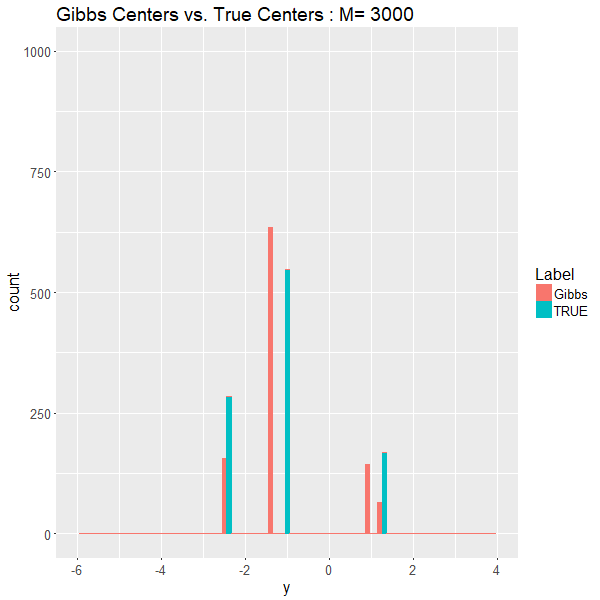

Animation of Centers of each cluster (100 simulation):

2D Simple Mixture Model: \[\begin{array} {rl} \bigg(\begin{array}{c}y_{i,1}\\ y_{i,2}\\ \end{array}\bigg)|\bigg(\begin{array}{c} \theta_{i,1}\\ \theta_{i,2}\\ \end{array}\bigg) & \sim \mathcal{N}\bigg(\bigg(\begin{array}{c} \theta_{i,1}\\ \theta_{i,2}\\ \end{array}\bigg), \bigg(\begin{array}{cc}\sigma^2 & \\ & \sigma^2\\ \end{array}\bigg)\bigg) \\ \bigg(\begin{array}{c}\theta_{i,1}\\ \theta_{i,2}\\ \end{array}\bigg) & \sim DP(\alpha, G_0) \\ G_0 & \sim \mathcal{N}\bigg(\bigg(\begin{array}{c}0\\ 0\\ \end{array}\bigg), \bigg(\begin{array}{cc}\sigma^2_0 & \\ & \sigma^2_0\\ \end{array}\bigg)\bigg) \end{array}\]

• Likelihood function: \(F\bigg(\bigg(\begin{array}{c}y_{i,1}\\ y_{i,2}\\ \end{array}\bigg)|\bigg(\begin{array}{c} \theta_{i,1}\\ \theta_{i,2}\\ \end{array}\bigg)\bigg) = \frac{1}{\sqrt{2\pi}}e^{-\frac{1}{2}(\mathbf{y_{i\cdot}} - \theta_{i\cdot})^2}\)

• Posterior distribution \(H_i \sim \mathcal{N}\bigg(\frac{\sigma^2_0}{\sigma^2_0+\sigma^2}\bigg(\begin{array}{c}y_{i,1}\\ y_{i,2}\\ \end{array}\bigg), \frac{\sigma^2_0\sigma^2}{\sigma^2_0+\sigma^2}\bigg(\begin{array}{cc}1 & \\ & 1\\ \end{array}\bigg)\bigg)\)

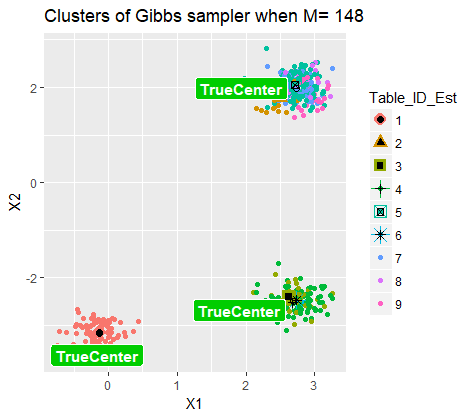

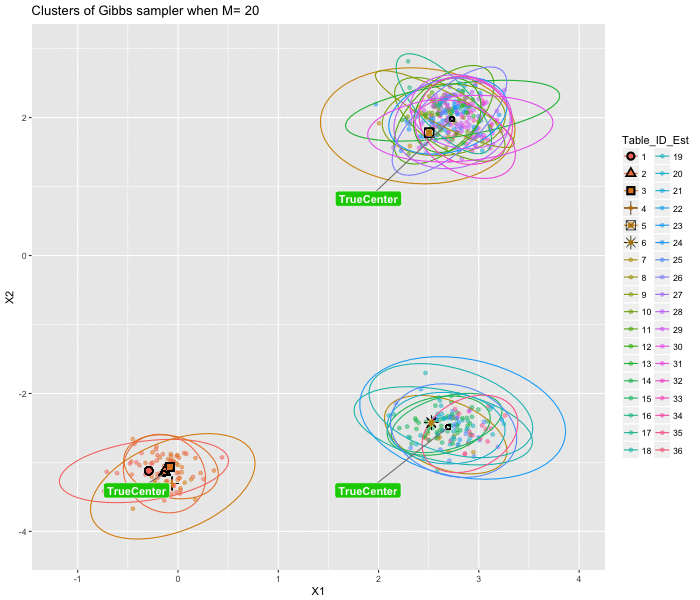

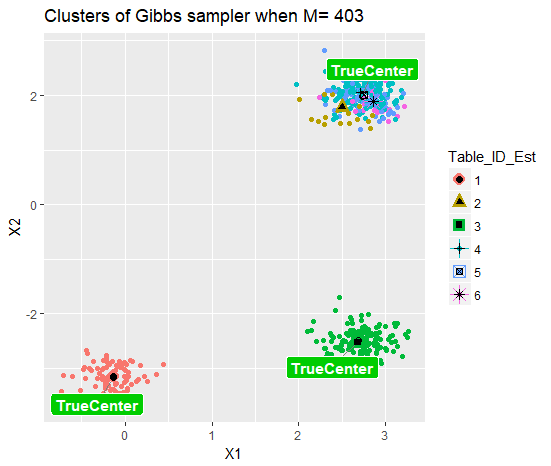

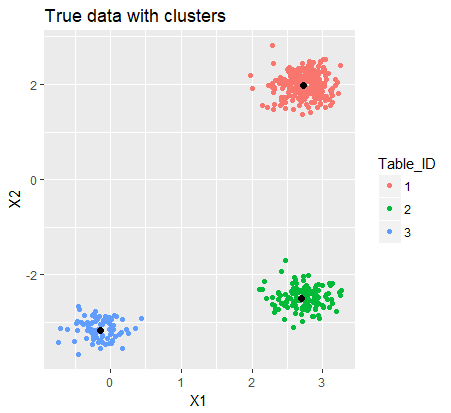

Underlying clusters and estimated clusters from Gibbs Sample (Algorithm for this 2D DPMM)

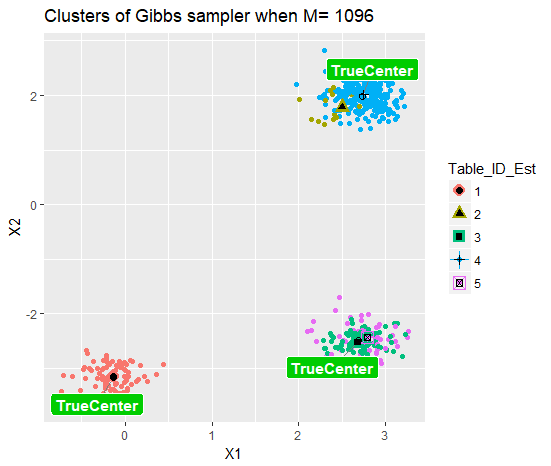

Underlying clusters and estimated clusters from Gibbs Sample

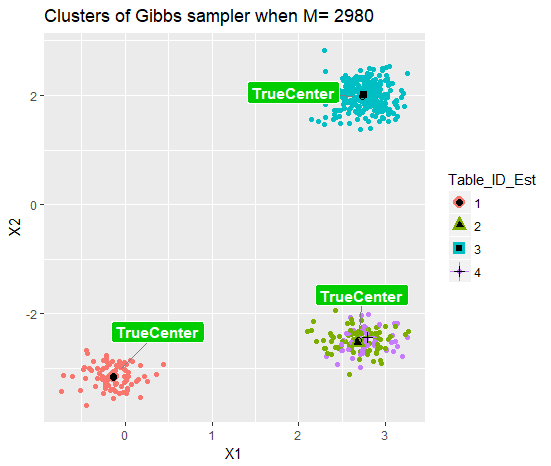

Underlying clusters and estimated clusters from Gibbs Sample

Underlying clusters and estimated clusters from Gibbs Sample

Underlying clusters and estimated clusters from Gibbs Sample

• In 1D base measure setting, Algorithm converge very quick
• Starting from all same initialization performs better
• In 1D base measure, when \(M>50\), total number of cluster from Gibbs Sampler is acceptable, but it's not ture in 2D base measure
